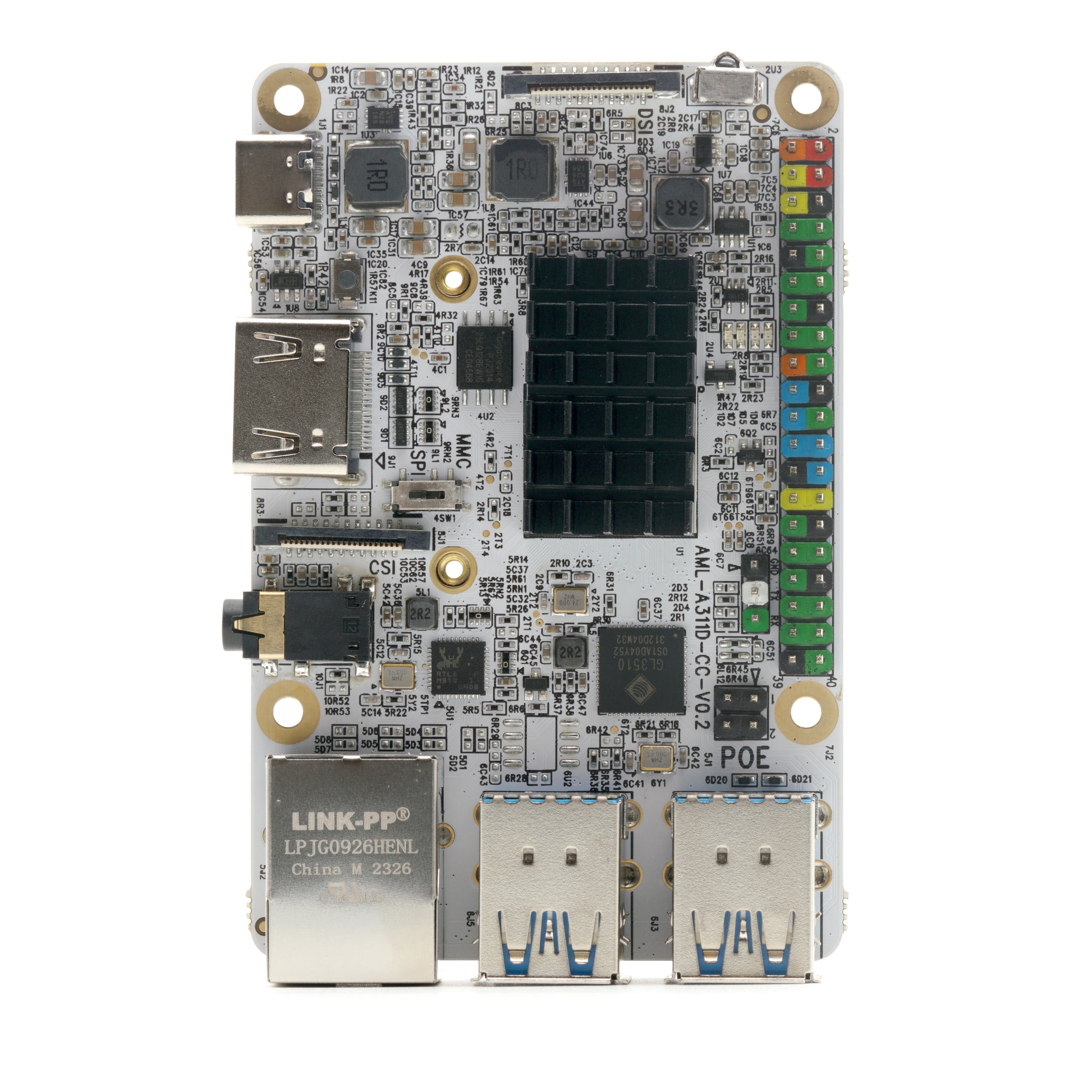

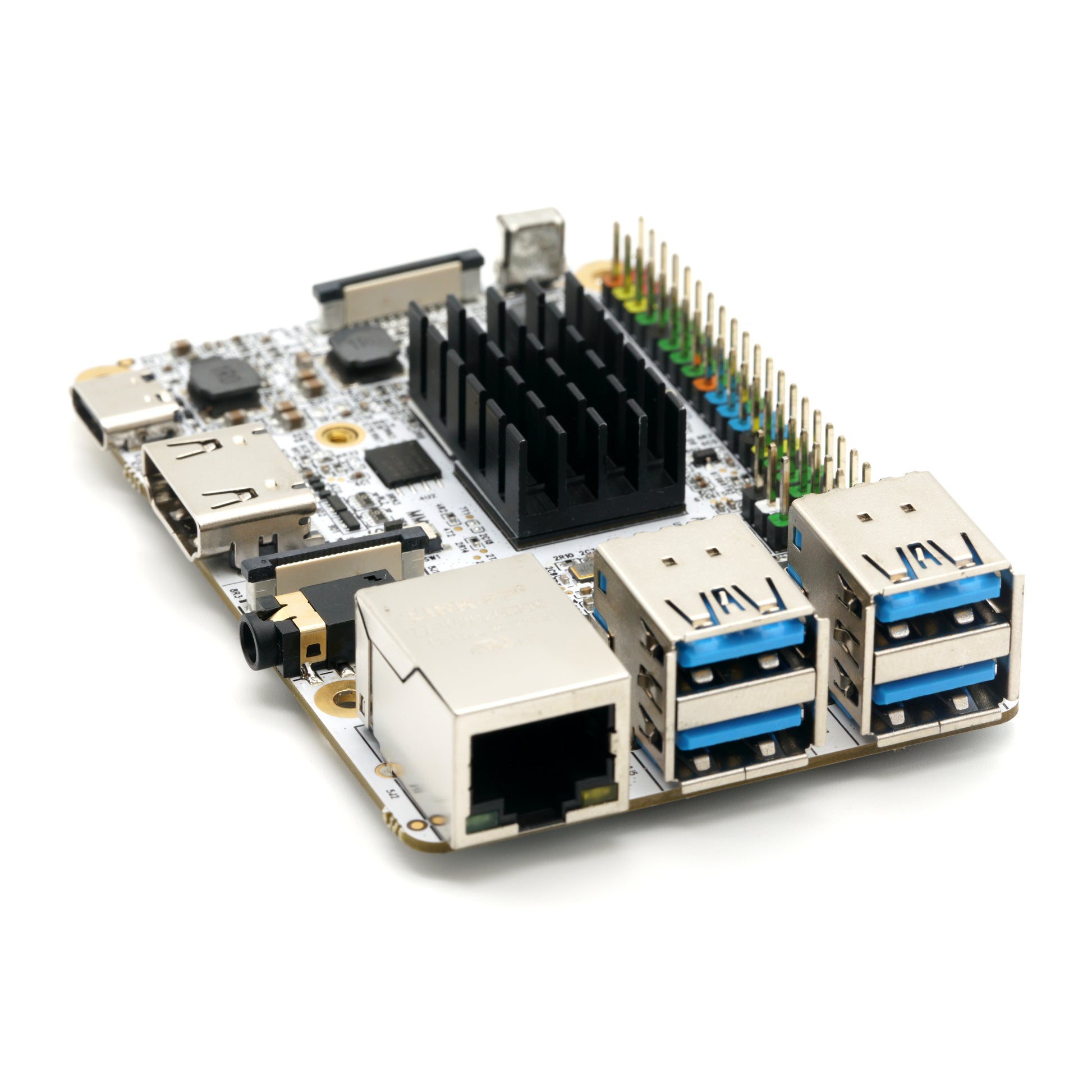

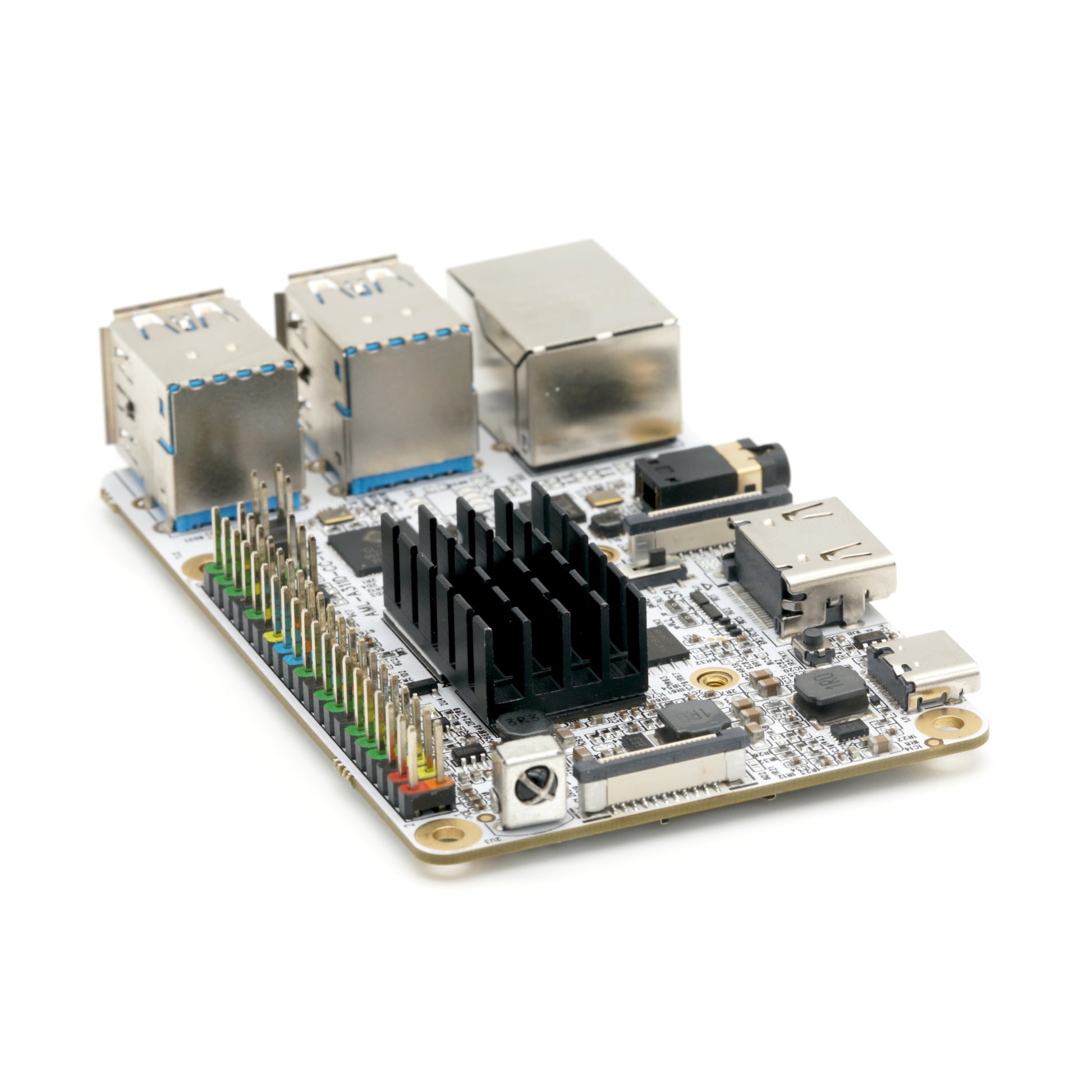

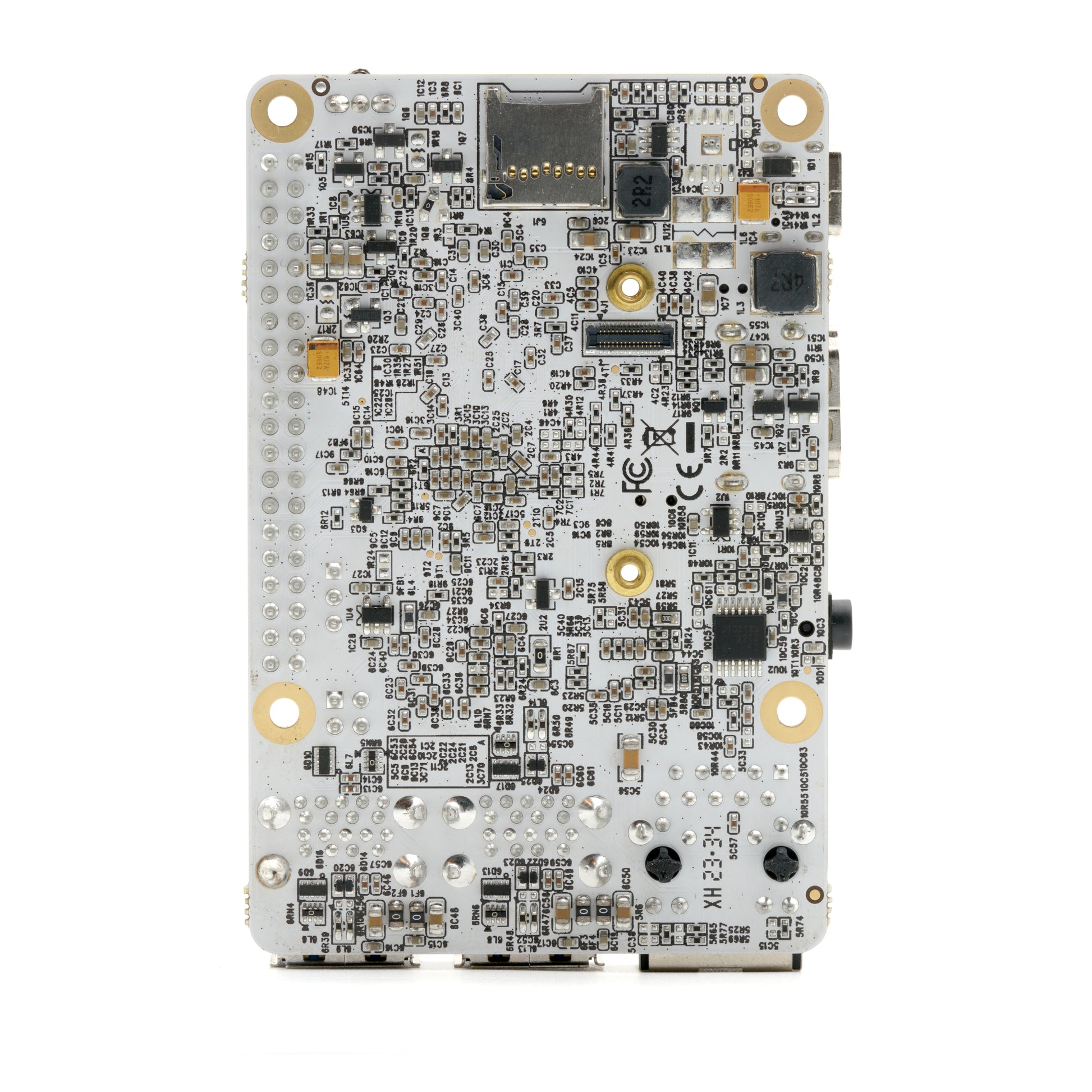

Libre Computer Alta AML-A311D-CC AI Single Board Computer

Libre Computer Alta AI SBC

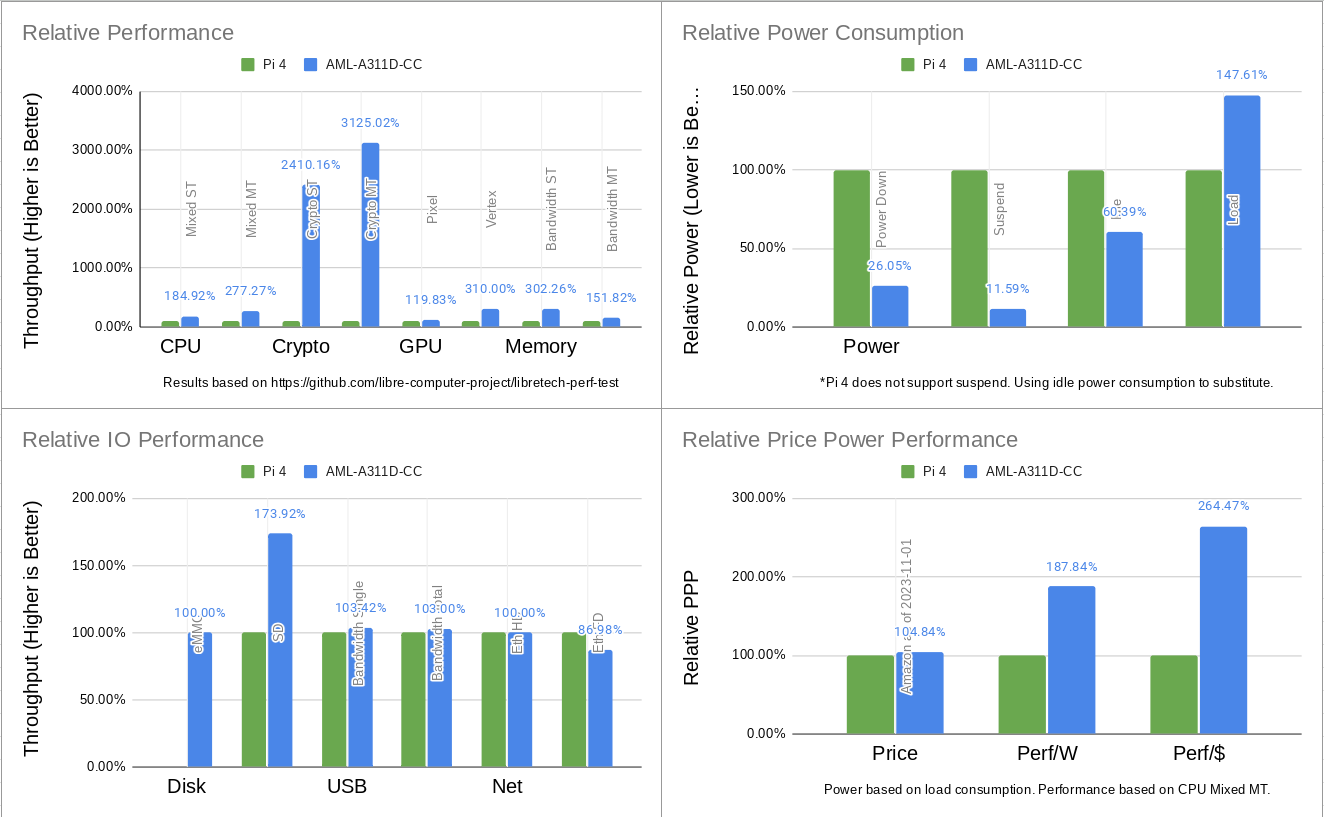

The focus of the Alta platform was to bring a cost-effective SBC capable of high performance and neuro-AI workloads. It features similiar IO to the Raspberry Pi® Model B series and provides more than double the performance for the Pi 4. The integrated NPU enables heterogeneous compute on uniform memory without the limitations of going over the PCIe bus. Together with Libre Computer's upstream software stack, Alta is the ideal platform for embedded applications that prioritize security, consistency of development, and software portability.

Specifications for AML-A311D-CC-4GB

• CPU: 4 P Cores + 2 E Cores
• GPU: 4 P Cores
• NPU: 4+1 Cores
• DRAM: 4GB LPDDR4
• USB Type C Power and 2.0 Data (Dual Role)
• 4 USB Type-A 3.0 (Hub)
• HDMI 2.0
• CVBS with Analog Stereo Audio 3.5mm Jack
• Gigabit Ethernet
• PoE Connector
• 40-Pin GPIO Connector
• IR Receiver Sensor
• DSI 4-Lane on 22-Pin Connector
• CSI 4-Lane on 22-Pin Connector
• 16MB SPI NOR
• eMMC 5.x Slim Connector
• MicroSD Card Slot with UHS SDR104
