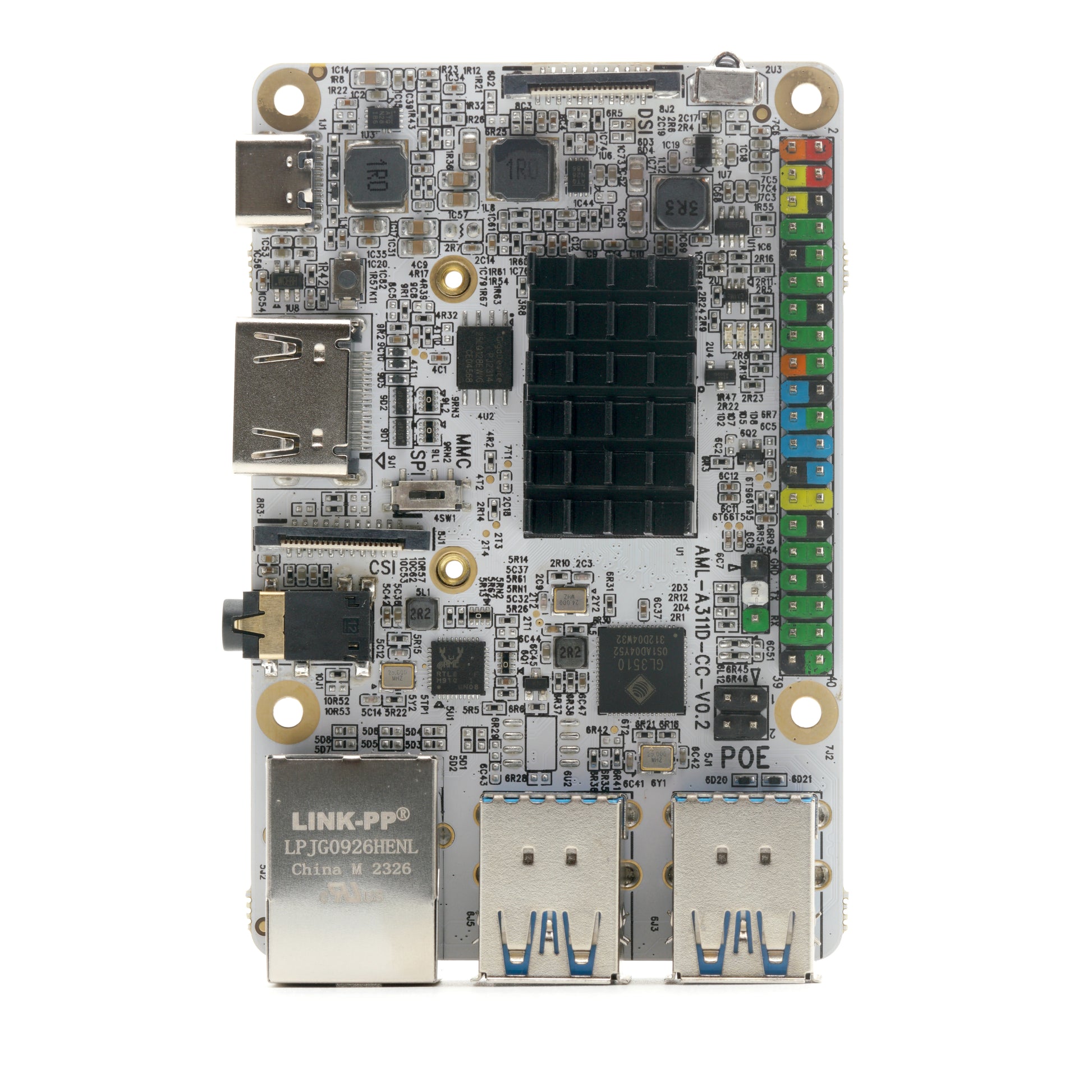

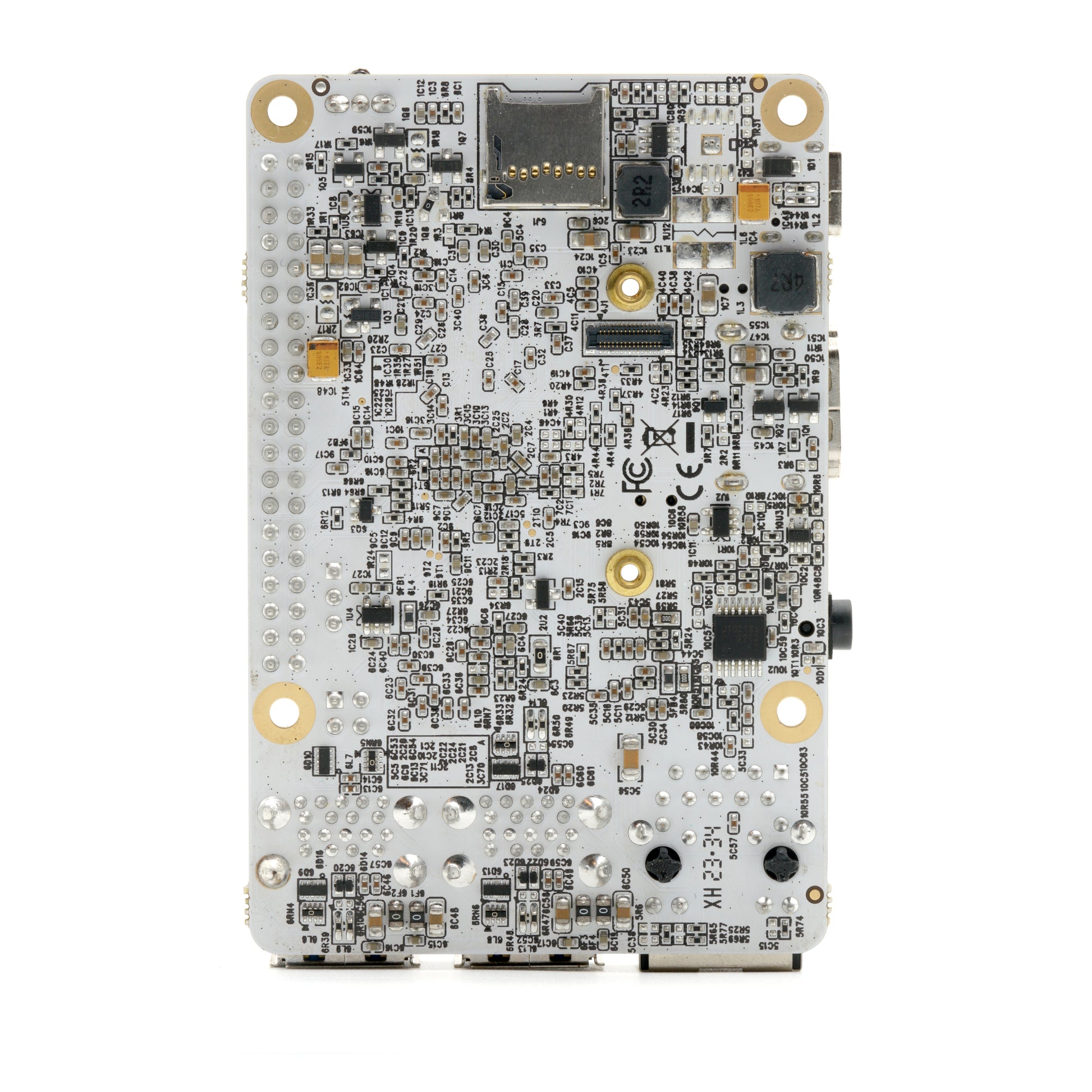

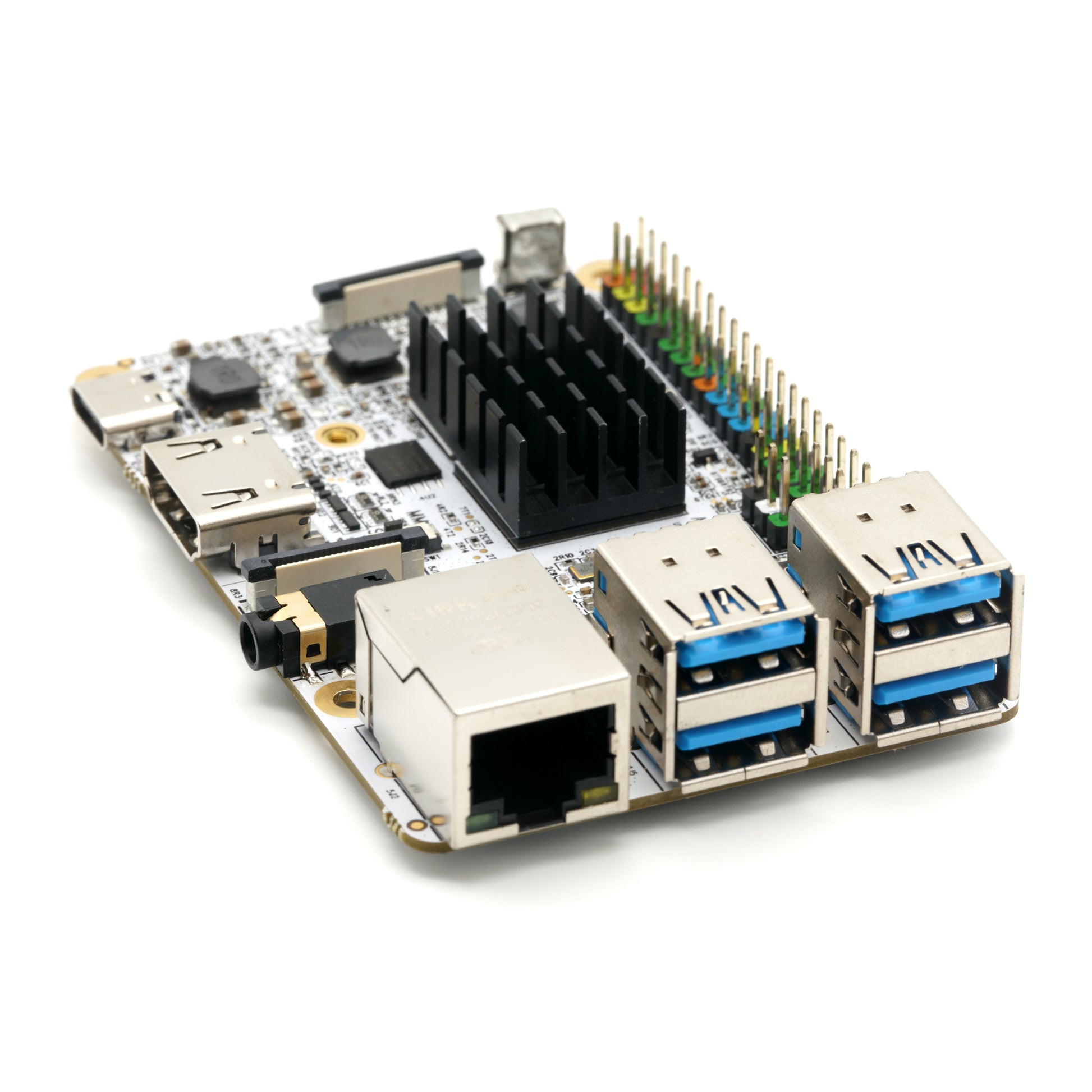

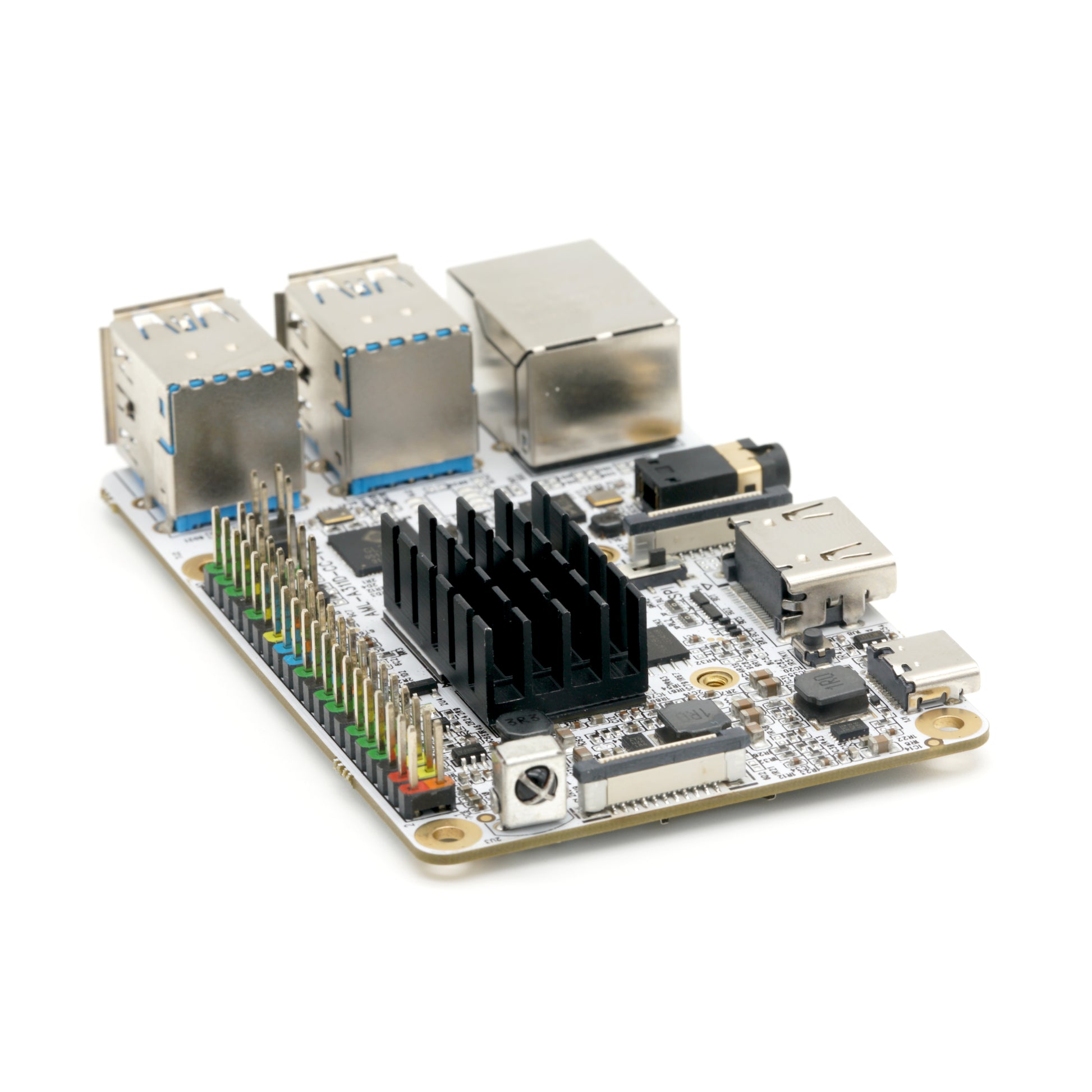

Libre Computer AML-A311D-CC Alta Pre-Production Sample

Pre-production sample for testing and evaluation only! Not final or retail product.

AML-A311D-CC-V01-4GB

• 4 M Cores
• 2 E Cores

• 4 M GPU Cores
• 4+1 NPU Cores
• 4GB LPDDR4X
• USB Type C Power and Data (Dual Role)
• HDMI 2.0
• CVBS with Analog Stereo Audio 3.5mm Jack
• Gigabit Ethernet
• 4 USB Type-A 3.0 (Hub)
• PoE Connector
• 40-Pin GPIO Connector
• IR Receiver Sensor
• DSI 4-Lane on 22-Pin Connector
• CSI 4-Lane on 22-Pin Connector
• 16MB SPI NOR
• eMMC 5.x Slim Connector
• MicroSD Card Slot with UHS SDR104
